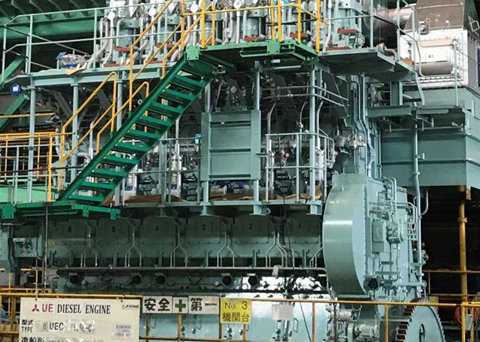

Japan Engine Corporation (J-ENG) has confirmed that it has received six follow-up orders for its new UEC42LSH engine. The first reference for the engine is a handysize bulk carrier under construction at a domestic Japanese shipyard, which is in the final stages of development. The vessel will be fitted with a UEC42LSH-Eco-D3 type engine.
The company told The Motorship it was targeting March 2021 for the first delivery of the UEC42LSH in 2019. As previously reported in The Motorship, in Tier 2 operation, the UEC42LSH is expected to achieve a fuel consumption rate of 164 g/kWh at maximum rating.
The company noted that the new engine had a smaller footprint than the preceding engine platform, while the engine’s fuel efficiency at slower operating speeds was highly competitive in its core small and medium-sized engine market segments.
The 42LSH-EGR type engine is equipped with the low-pressure exhaust gas recirculation (EGR) system. The EGR solution eliminates the need for the discharge of EGR bleed-off water. J-ENG notes that restrictions on such discharges are expected to be extended in some areas around North America and Europe in the future.
PRINCIPAL PARTICULARS
Engine model | 6UEC42LSH-Eco-D3-EGR | 6UEC45LSE-Eco-B2-EGR |
Bore, mm | 420 | 450 |
Stroke, mm | 1,930 | 1,930 |
Stroke / bore | 4.6 | 4.3 |
Cylinder number | 5-8 | 5-8 |
Output (kW) | 7,560 | 8,280 |
Engine speed, RPM | 118 | 128 |
Pme, bar | 24.0 | 21.1 |
Piston speed, m/s | 7.6 | 8.2 |
SFOC, 100%, Tier2 mode, g/kWh | 164 | 169 |
SFOC, 100%, Tier3 mode, g/kWh | 165.6 (LP-EGR) | 170.7 (LP-EGR) |
